909-2SC Suspended light

Back

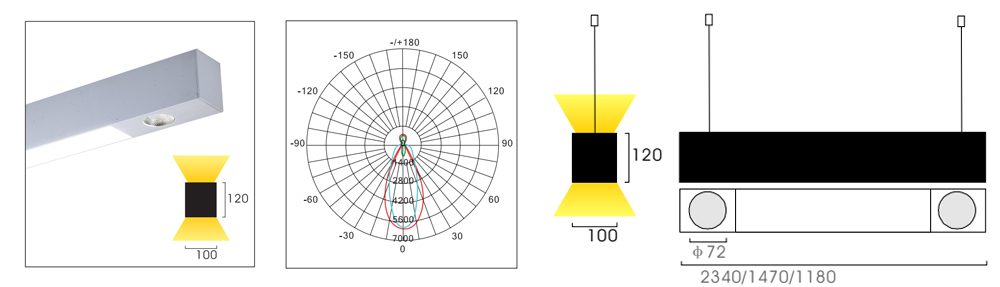

2 上下.jpg

PowerL*W*H(mm)Lumen/PowerItem No
Low1470*100*1206500lm/65W909-2SC.F125W/H120W+COB210
1180*100*1205500lm/55W909-2SC.F120W/H115W+COB210
Medium1470*100*1208300lm/83W909-2SC.A135W/C128W+COB210
1180*100*1206900lm/69W909-2SC.A128W/C121W+COB210
High1180*100*1208300lm/83W909-2SC.D135W/J128W+COB210

Beam angle :36°、24°、12°


Material & technology


Light distribution:Direct Light,or Direct/Indirect Light

Light source:High brightness SMD LED, or T5 (G5)

Color rendering:CRI≥80, can customize CRI≥90

CCT:3000K, 4000K, 6500K, can customize 5000K

Driver:Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions:Optional with emergency kits and multifunction sensor

Lamp material:High grade anodizing aluminum (6063 Alloy), painted with  White, can customize other color

Diffuser:Opal prismatic diffuser with COB spotlight,COB with angle 36°,or customize 24°/12°

End caps material:ABS

IP:20

Installation:S-Suspended, C-Ceiling mounted, Can connect with end caps,also can make shadowless continuous lighting system
