913-1R Recessed with trim light-W69*H90,Direct/Indirect light or Direct light Can connect without end caps--ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.

Back


Power	LWH(mm)	Lumen/Power	Ltem No
Low	11806990	2000lm/20W	913-1R.F120W
	14706990	2500lm/25W	913-1R.F125W
	23406990	4000lm/40W	913-1R.F140W
Medium	11806990	2800lm/28W	913-1R.A128W
	14706990	3500lm/35W	913-1R.A135W
	23406990	5600lm/56W	913-1R.A156W
High	11806990	5320lm/38W	913-1R.2C138W
	14706990	6580lm/47W	913-1R.2C147W
	23406990	10640lm/76W	913-1R.2C176W


Material & technology

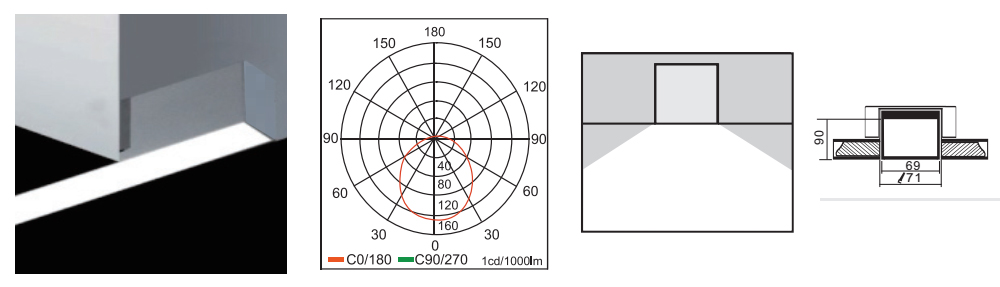

Light distribution：Direct/Indirect Light or Direct Light

Light source：High brightness SMD LED, or T5 (G5)

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White, can customize other color

Diffuser：Opal prismatic diffuser or “I” shape louvre

End caps material：ABS

IP：20

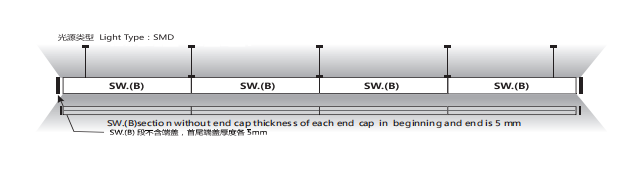

Connection：Can make shadowless continuous lighting system

Installation：S-Suspended, W-Wall mounted, C-Ceiling mounted, R-Recessed without trim

205S Suspend light
W81*H90，Direct light or Direct/Indirect light
Can connect without end caps
