| Power | 灯具尺寸(mm) | 流明/功率 | 订货型号 |
|---|---|---|---|
| Low | 1195*60*88 | 2100lm/21W | 929-2S.F115+S203E |
| Medium | 1195*60*88 | 2900lm/29W | 929-2S.A121+S204E |
| High | 1195*60*88 | 5120lm/40W | 929-2S.2A128+S206W |
can customize Direct/Indirect light | |||
| Low | 1195*60*88 | 4100lm/41W | 929-2S.F120/F115+S203E |
| Medium | 1195*60*88 | 5700lm/57W | 929-2S.A128/A121+S204E |
| High | 1195*60*88 | 10440lm/78W | 929-2S.2A138/2A128+R206E |
Beam angle : 48°、34°、12°
Material & technology
Light distribution：Direct Light or Direct / Indirect light
Light source：High brightness SMD LED
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10Vdimming, DALI dimming, SCR dimming
Other functions：Optional with emergency kits and multifunction sensor
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with Pure White, can customize other color
Diffuser：Opal prismatic diffuser combined with LED module,LED Module with light angle 48°，or customize 34°/12°
End caps material：ABS
IP：20

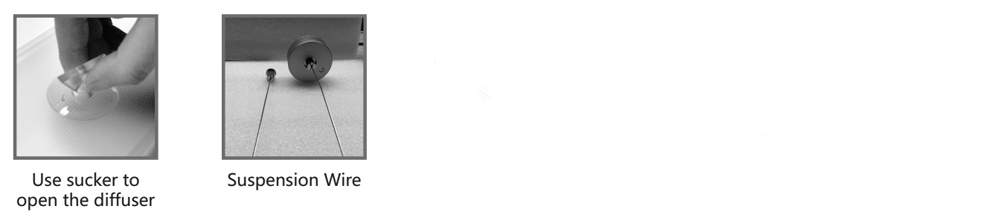

Installation：S-Suspended，C-Ceiling mounted, W-Wall mounted，R-Recessed without trim，Can connect with end caps,also can make 180° or 90° shadowless system without end caps.
